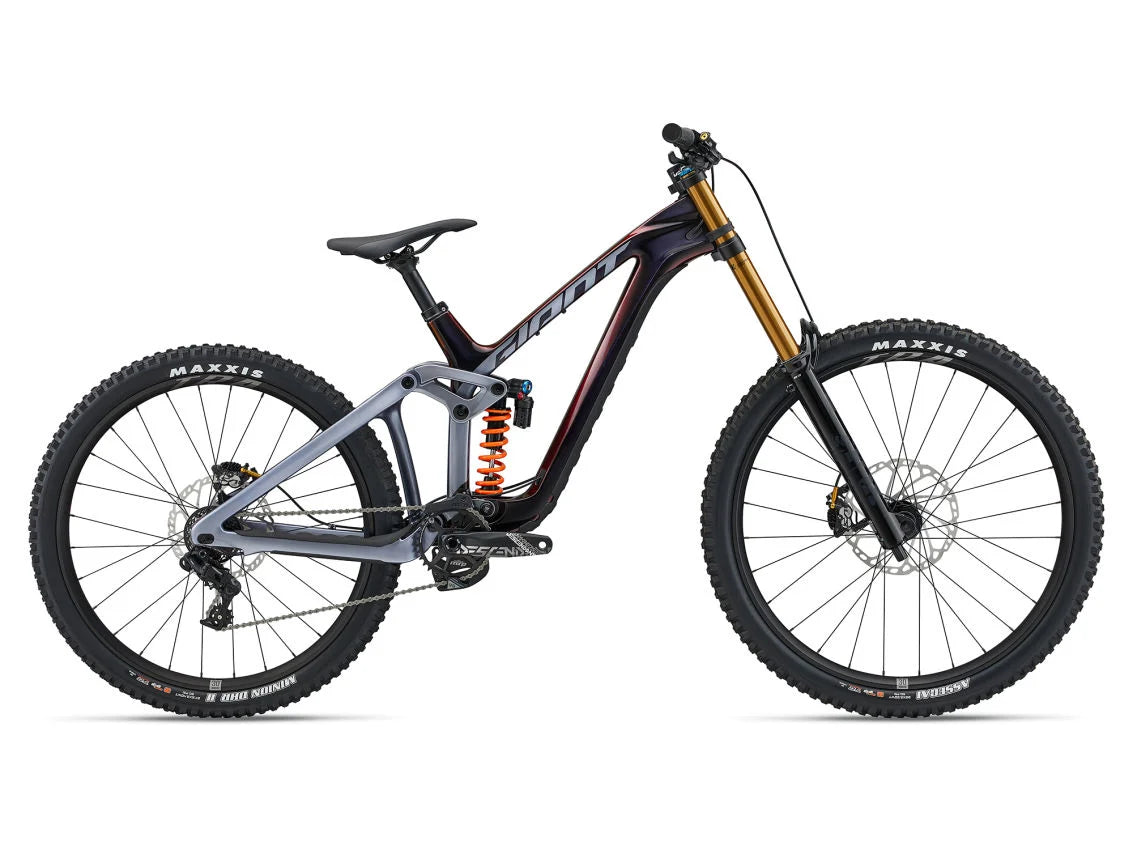

xBike Specifications
Available Sizes
S/M, M/L, L/XL
Color
Black Lava / Mercury / Chrome
Frame & Suspension
Frame
Advanced-grade composite frame featuring both front and rear triangles built for downhill performance. The frame includes 200mm of Maestro suspension travel and multiple geometry adjustment options using flip chips at the headset, dropout (DH), and Maestro 3 system. It uses a 12×157mm thru-axle for increased stiffness and is compatible with either 27.5-inch or 29-inch rear wheels.
Front Suspension
Fox 40 Factory Fork
-
GRIP X2 damper
-
203mm travel
-
20×110 axle spacing
-
Built for high-speed downhill control and durability
Rear Suspension
Fox DHX2 Factory Coil Shock
-
SLS coil spring
-
Size: 225 × 75
-
Custom-tuned specifically for Giant frames
Spring rates by frame size:
-
S/M: 425 lb
-
M/L: 450 lb
-
L/XL: 475 lb
Cockpit
Handlebar
Giant Contact SL TR35
800mm width
35mm clamp diameter
20mm rise
Grips
Giant Tactal Pro Single Lock-On
Stem
TruVativ Descendant Direct Mount
35mm clamp diameter
50mm length (all sizes)
Seat Components
Seatpost
Giant Contact
30.9mm diameter
0mm offset
400mm length
Saddle
Giant Romero
Drivetrain
Shifters
SRAM GX Eagle DH
7-speed drivetrain
Rear Derailleur
SRAM GX Eagle DH
Front Derailleur
Not applicable (1x drivetrain)
Cassette
SRAM GX DH
11–25T gear range
Chain
SRAM PC1110
Crankset
TruVativ Descendant DH
34T chainring
56.5mm chainline
Crank lengths by frame size:
-
S/M: 165mm
-
M/L: 170mm
-
L/XL: 170mm
Bottom Bracket
SRAM DUB threaded
83mm width
Braking System
Brakes
Shimano Saint M820 hydraulic disc brakes
Brake Levers
Shimano Saint BL-M820
Brake Rotors
-
Front: 220mm Shimano RT-66
-
Rear: 203mm Shimano RT-66
This powerful braking setup provides maximum stopping power for downhill riding.
Wheels
Rims
Giant TRA 2 rims
6061 aluminum alloy construction
Hookless rim design with Wide Guard Technology
Rim specifications:
-
30mm inner width
-
40mm outer width
-
21mm rim height
Hubs
Front Hub
Giant MTB alloy hub
6-bolt disc mount
Rear Hub
Giant MTB alloy hub
30-tooth 3-pawl driver
6-bolt disc mount
Spokes
Stainless steel spokes
Tires
Front Tire
Maxxis Assegai
29 × 2.5 WT
3C MaxxGrip compound
DH casing
Tubeless Ready
Rear Tire
Maxxis Minion DHR II
27.5 × 2.4 WT
3C MaxxGrip compound
DH casing
Tubeless Ready
Additional Features
-
Tubeless-ready wheel system
-
Maximum tire clearance: 2.5 inches
-
Maximum chainring size: 36T
-
MRP SXg chain guide included
-
Full down tube protector for extra frame protection
Weight
Approximate weight:
16.41 kg (36 lb 2 oz) – Size M/L
