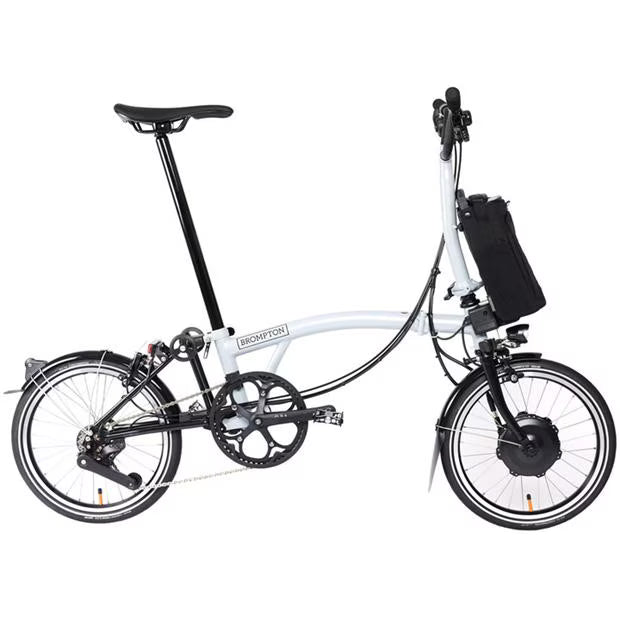

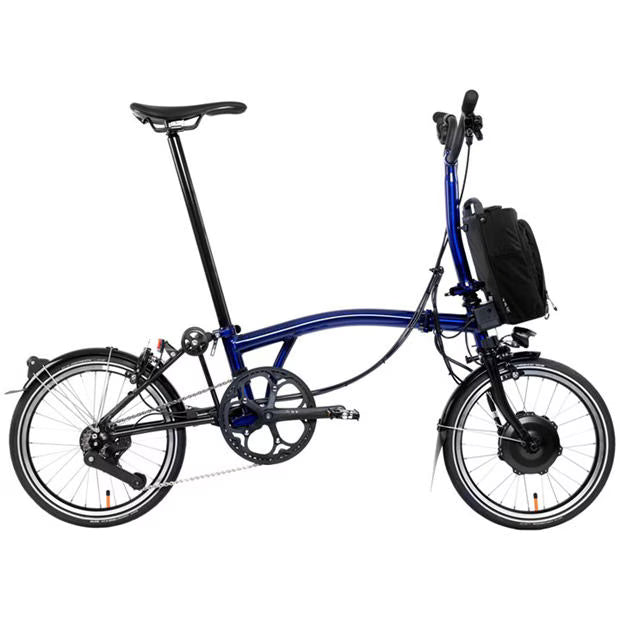

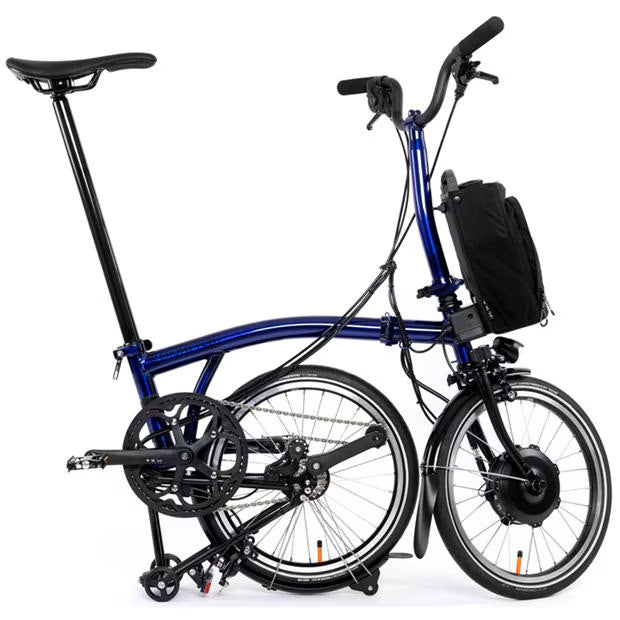

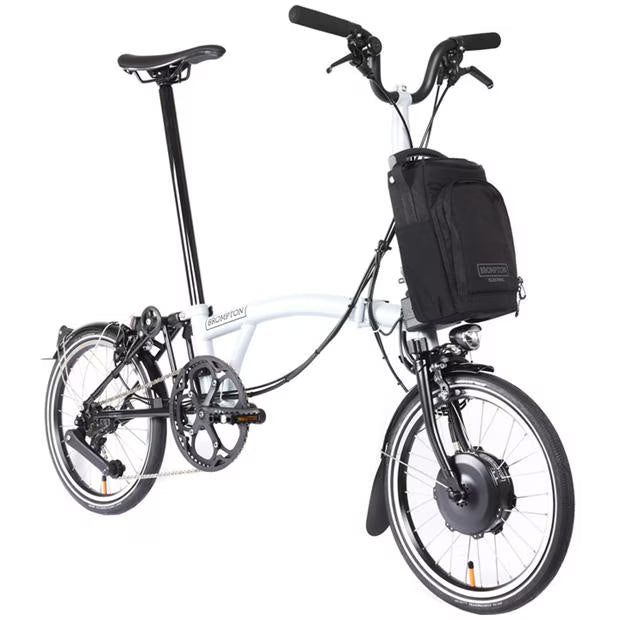

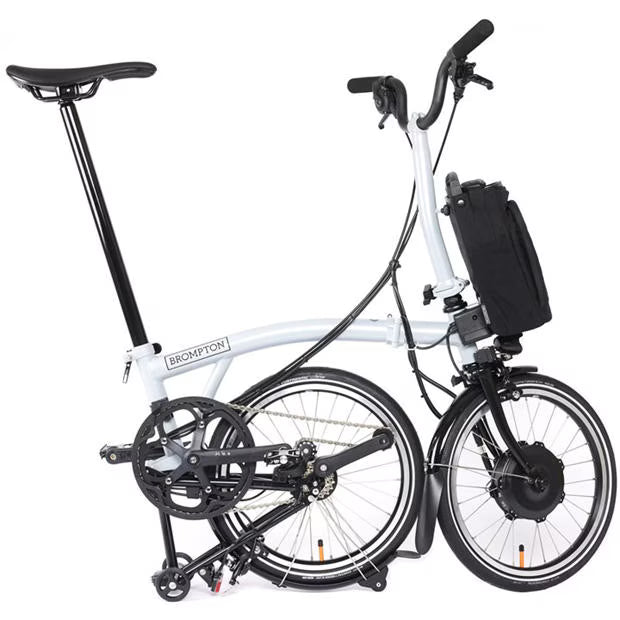

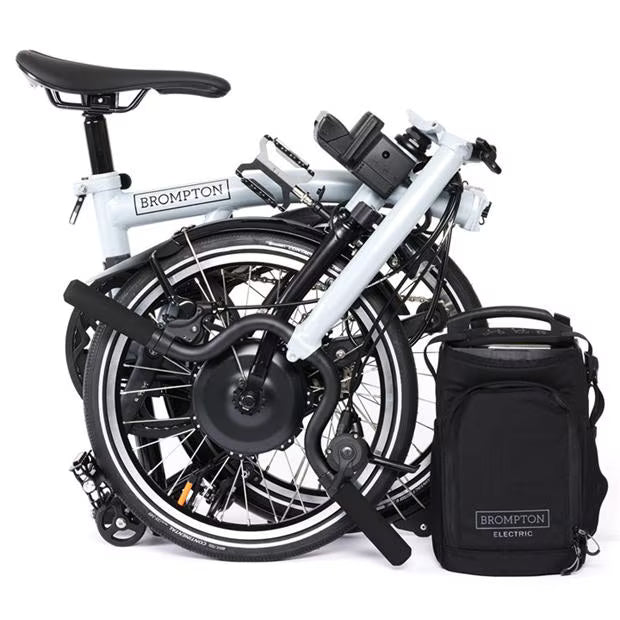

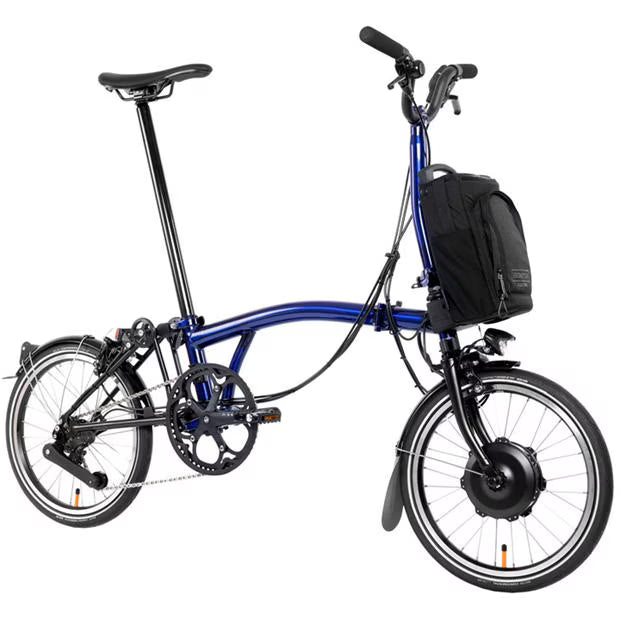

Electric P Line 4-speed - Mid Handlebar - Folding Bike

About the Brompton Electric P Line 4 Speed – Mid Handlebar

Key Features

• • Supercharge your day with the custom-made electric system developed with Williams Advanced Engineering. The compact250-W hub motor does the hard work for you. Hop on and choose from three levels of Smart Pedal Assist. Start your ride. Feel the torque. The fine-tuned sensor in the bottom bracket knows exactly when to start (smoothly) and ease off. Breeze through the city at speeds of up to 25 km/h (15 mph). Go and explore up to 70-kilometres (45-miles).

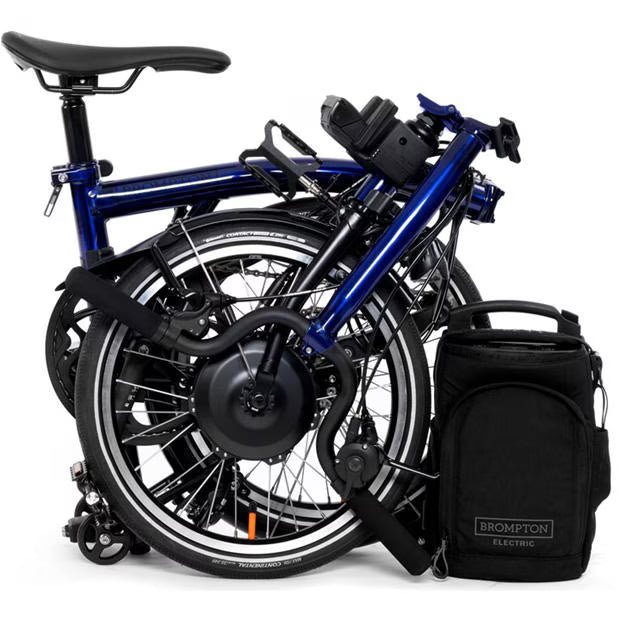

• • The compact Brompton Electric 300wh lithium-ion battery packs in the power. And when it comes to charging, it’s as easy as plugging in your phone. Remove the battery pack(2.9 kg including bag) with one quick click. Plug into any regular socket. Fully charge in 4 hours, or boost for less if you’re short on time.

Specifications

Frameset

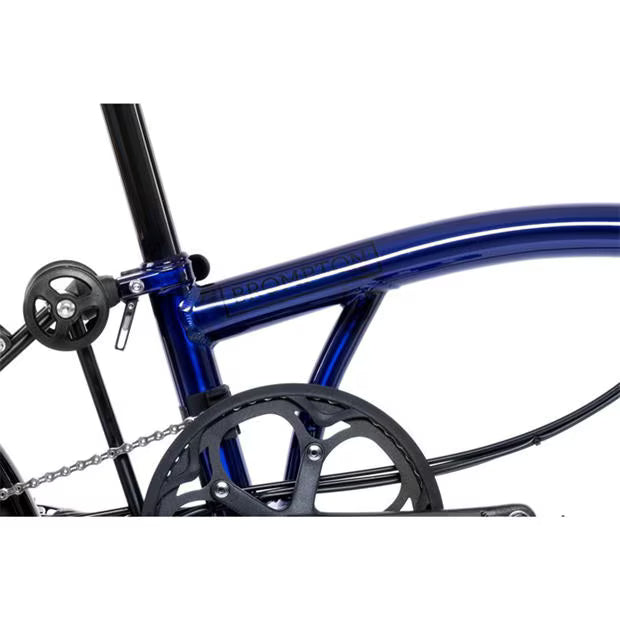

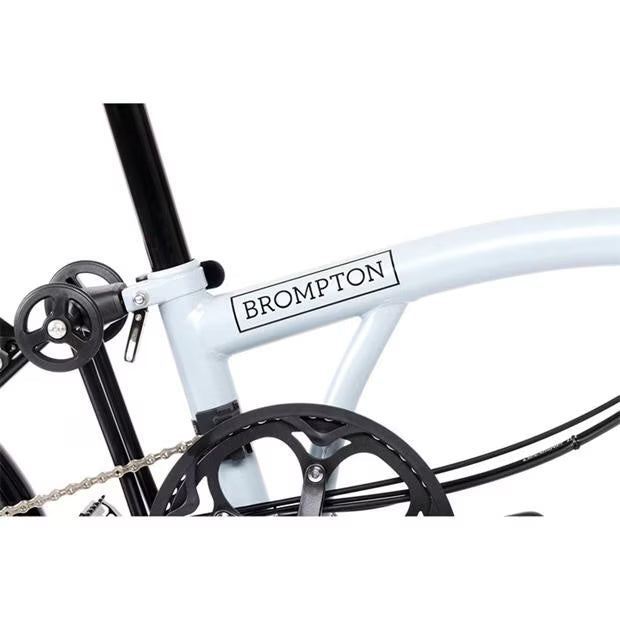

• • Frame: Precision drawn heat-treated steel tubing with hand brazing and selected auto-brazed joints

• • Rear Frame: Superlight Advance rear frame made from Titanium with a replaceable hanger, redesigned suspension block

• • Fork: Reinforced steel brazed fork

Wheels

• • Front Wheel: 250W Brushless DC motor providing assistance up to 25 km/h

• • Rear Wheel: Single wall alloy rim, 28 spokes laced to a 4 speed rear hub

• • Rims: Alloy

• • Mudguards: Curved profile with updated mudguard flaps

Drivetrain

• • Pedals: Quick Release other than Emerald Lacquer, Storm Grey and Midnight Black feature Brompton Folding left hand and non-folding right-hand pedals

• • Crank: (6061) forged aluminium crank with 54T chainring and integrated chainguard

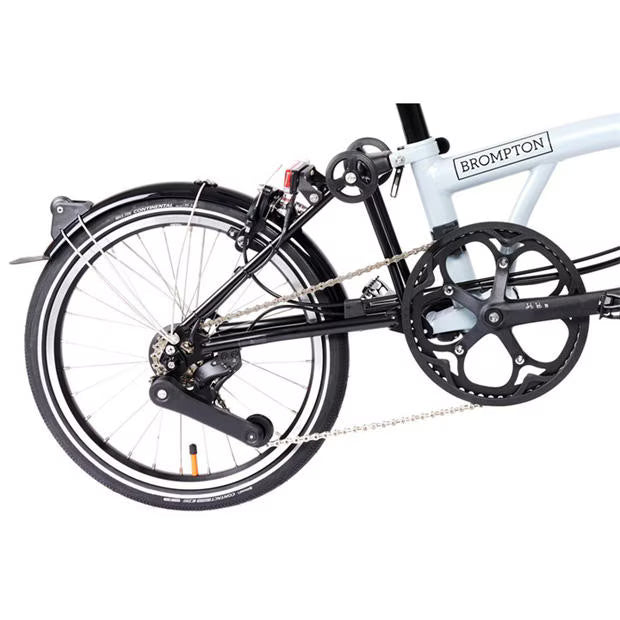

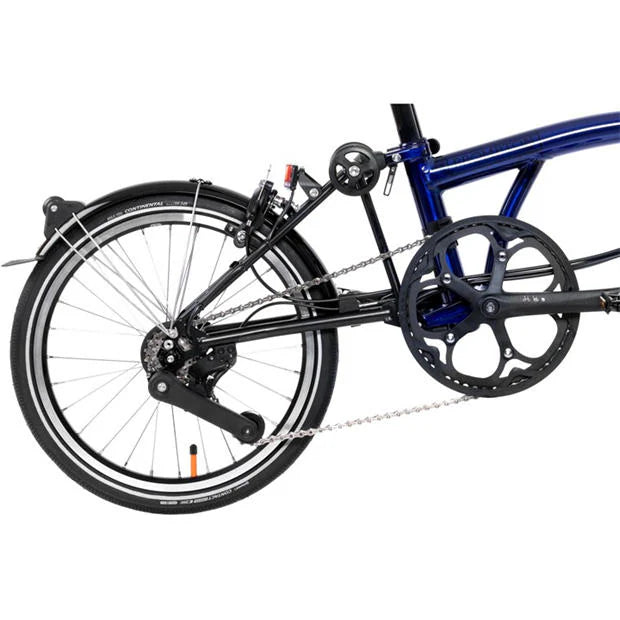

• • Rear Derailleur: Patent-pending direct mount 4-speed derailleur

• • Shifters: Brompton 4-speed trigger shifter

• • Chain Tensioner: Advance chain tensioner with replaceable hanger mounting

• • Bottom Bracket: Integrated sealed bearing BB with cadence and torque sensor

Components

• • Handlebar: Mid handlebar, triple butted (6061) aluminium with shot-peened finish

• • Grips: Superlight lock-on grips with precision ground lightweight foam adhered to ultrathin engineered core weighing just 42g per pair

• • Headset: Superlight headset

• • Brakes: Brompton Dual Pivot Calipers

• • Brake Levers: Brompton levers

• • Saddle: Superlight

• • Seatpost: Chromoly steel tube, centreless ground, chrome plated for hardness, delivered in a standard length, suitable for maximum inside leg 33 inches / 84 cm

Electrics

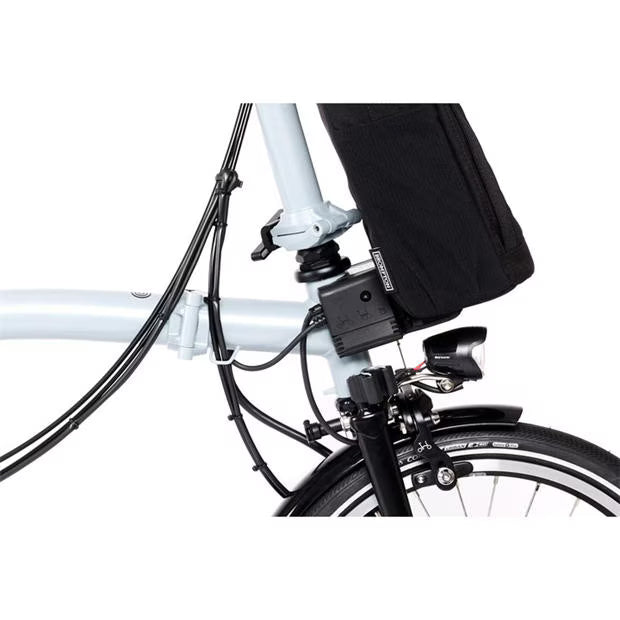

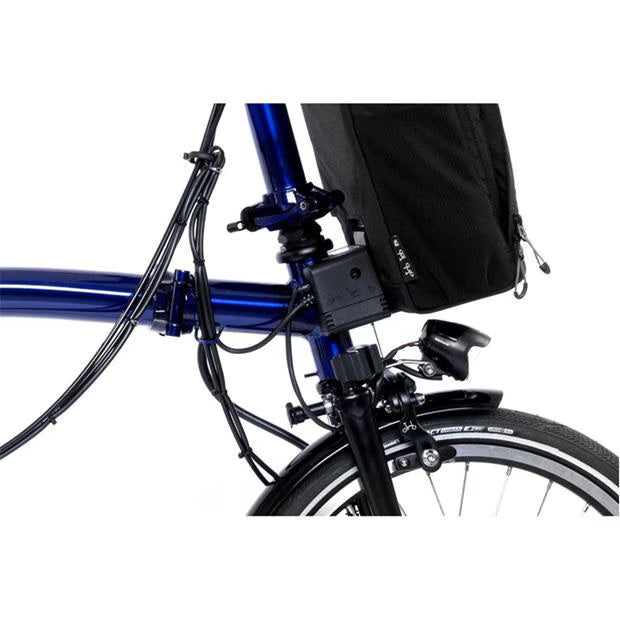

• • Lighting: 40 Lux Busch & Müller AVY LED front lamp and rear lamp powered by the main battery

• • Battery: 300Wh 36V with LED display. Range 20-45 miles (30-70km). 5V 1.5A USB port to charge portable devices. 4-hour full charge using included 2A charger

Product code: 910914
