Description

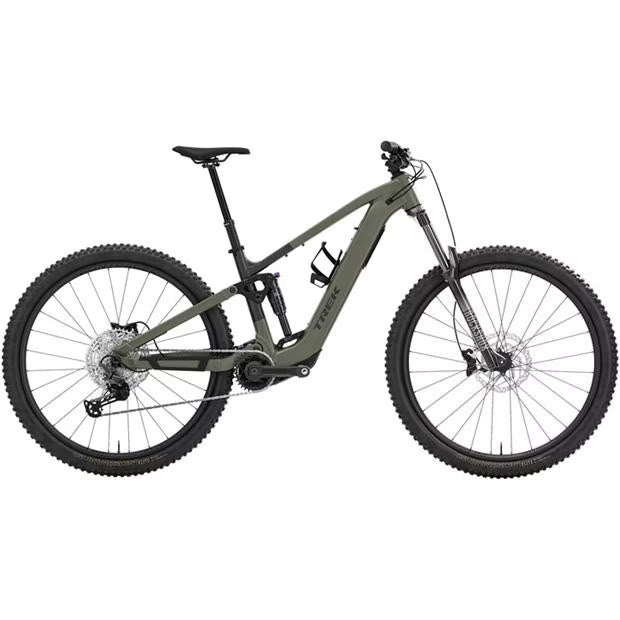

xThe Fuel+ EX 5 is a quiet and capable electric mountain bike that's up for any trail, at any time. Its Alpha NEXT Platinum aluminium frame delivers a smooth boost from a compact TQ HPR-60 motor, while a RockShox fork and X-Fusion shock (145 mm rear, 150 mm front) provide trail-smoothing confidence. A Shimano Deore drivetrain gives you plenty of gears for steep climbs and 4-piston Shimano M4100 hydraulic brakes provide reliable stopping power.
Specifications
Frameset
-
- Frame: Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
-
- Fork: Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
-

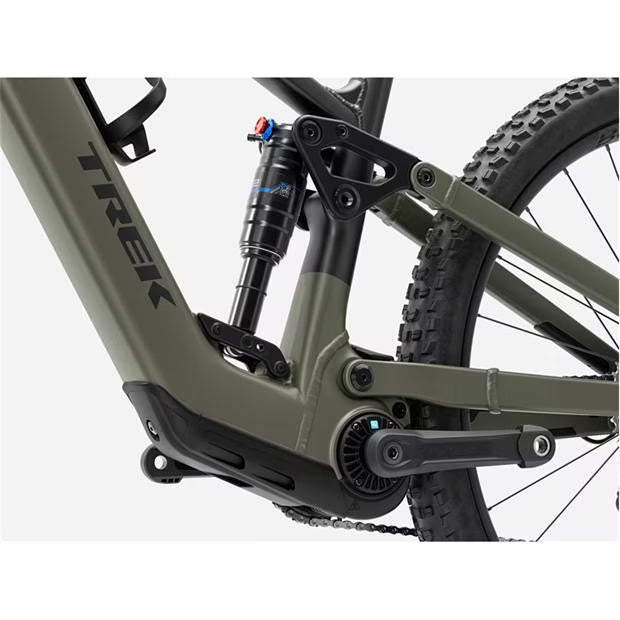

- Rear Shock: X-Fusion Pro 2, 2-position damper, 205 mm x 60mm
Wheels
-
- Rims: Bontrager Line TLR 30, Tubeless-Ready
-
- Tyres: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi 29x2.40

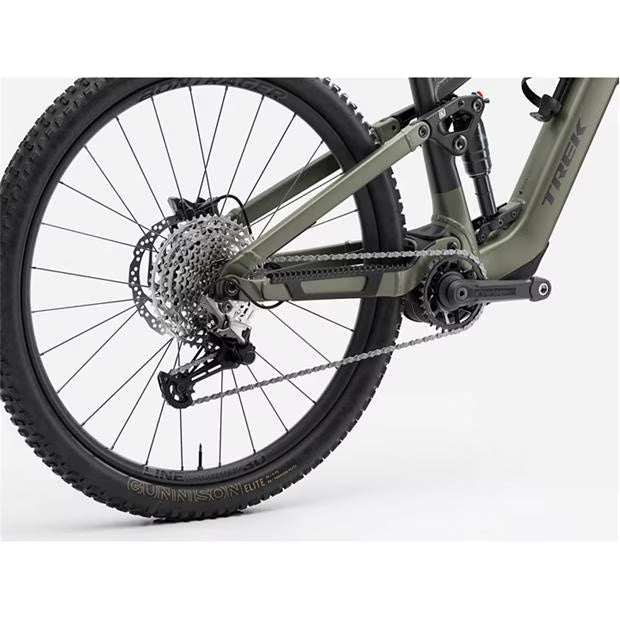

Drivetrain
-
- Crankset: E*thirteen E*spec Plus, 160 mm length
-
- Shifters: Shimano Deore M6100, 12-speed
-
- Rear Derailleur: Shimano Deore M6100, long cage
-
- Chain: Shimano Deore M6100, 12-speed
-
- Cassette: Shimano Deore M6100, 10-51, 12-speed
Components
-
- Handlebar: Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
-
- Stem: Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
-
- Grips: Trek Line Comp, nylon lock-on
-
- Brakes: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
-
- Saddle: Bontrager Verse Short, stainless steel rails
-
- Seatpost: TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
E-System
-
- Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
-
- Battery: TQ 580Wh
-
- Controller: TQ LED display with Bluetooth & ANT+ connectivity
Trek Fuel EX+ Sizing
| S | M | L | XL | |
|---|---|---|---|---|
| Rider Height (cm) | 155 - 165 | 165 - 176 | 177 - 188 | 188 - 195 |
| Inseam (cm) | 74 - 78 | 79 - 83 | 84 - 89 | 89 - 91 |
Product code: 930395
