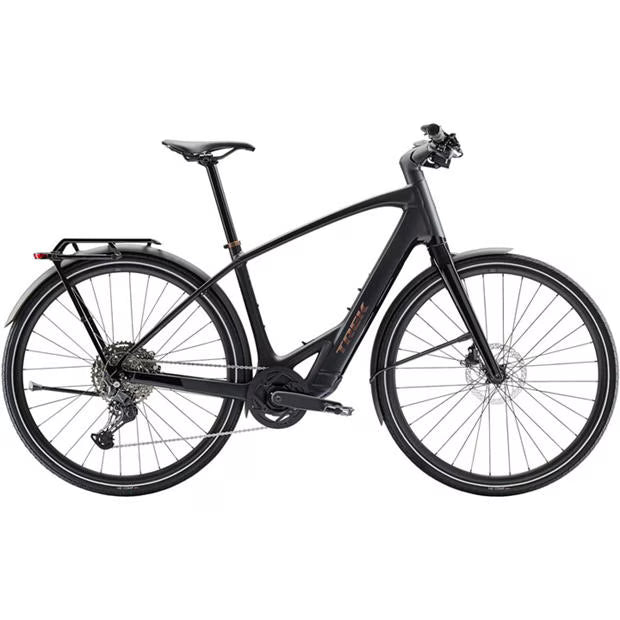

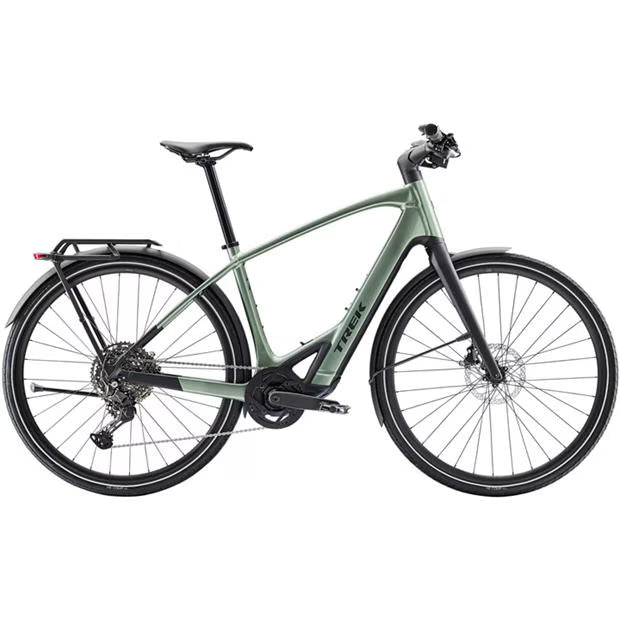

FX+ 7 2026 Electric Hybrid Bike

The FX+ 7 is a supremely light, quiet and sleek electric city bike made for cruising across town on greenways and bustling commutes. Its confidence-inspiring geometry and elegant stepover frame make it extra easy to manoeuvre, mount and dismount. Plus, it boasts a TQ motor that's compact, quiet and supremely smooth for a boost that feels completely natural. This ride comes ready for anything with a lightweight carbon fork, built-in front and rear lights, hydraulic disc brakes and crisp, clean shifting thanks to Shimano CUES.   The Tech you'll get: A sleek Alpha Platinum Aluminium frame with a carbon fork. The TQ's quiet and compact HPR50 motor (50 nm/250 W) capable of speeds up to 15.5 mph (25 km/h in Europe), with a 360 Wh battery and built-in LED display. Clean shifts from a 10-speed Shimano CUES U6000 drivetrain, powerful hydraulic disc brakes and 700c wheels with grippy 40 mm tyres. Plus, all the odds and ends you need for the commute, like built-in front and rear lights, a kickstand and a MIK-compatible rear rack.

---



Key Features



• • You get a bike that's not only beautiful to look at, but a dream to ride thanks to the quiet, natural-feeling assist



• • The TQ's HPR50 motor is lightweight, compact, quiet and gives you just the boost you crave on steep hills



• • Its Alpha Platinum Aluminium frame keeps your cables and battery managed neatly inside

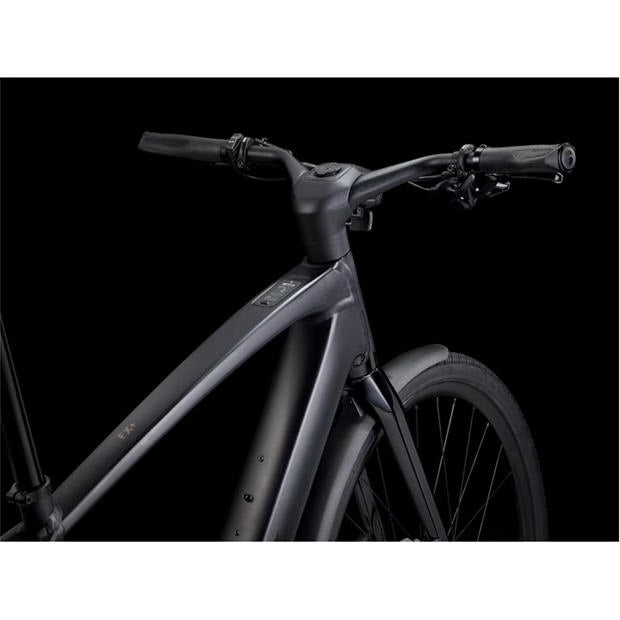

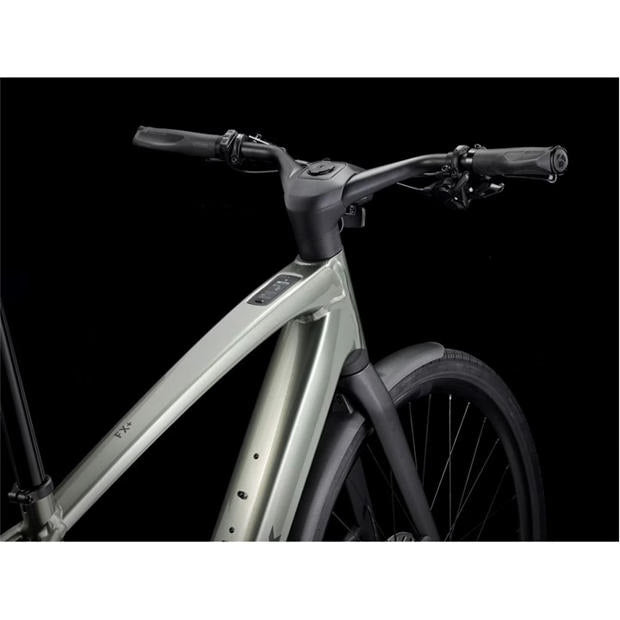

• • Intuitive controls and a sleek, integrated display make toggling through modes and viewing ride data a breeze

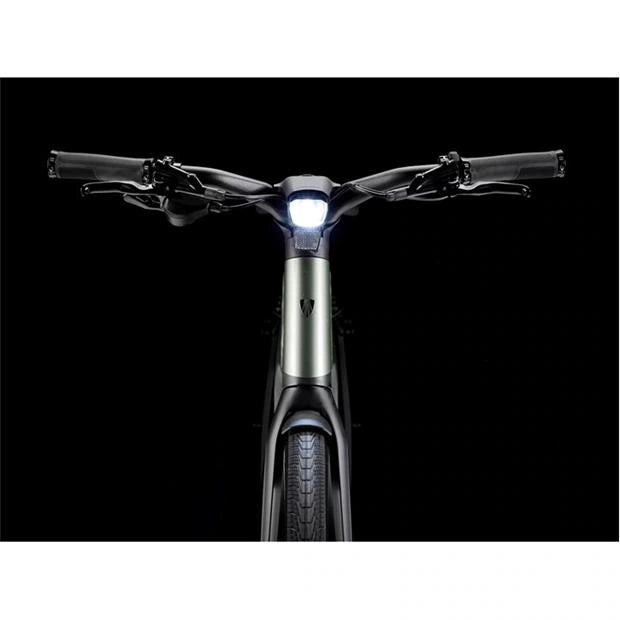

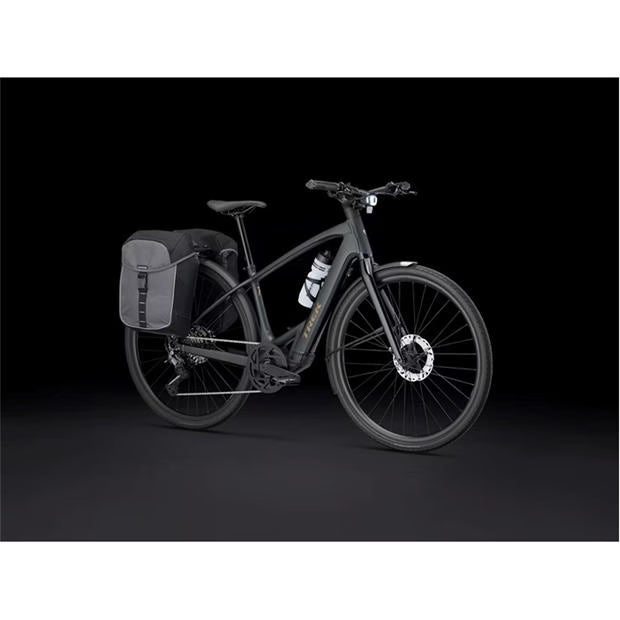

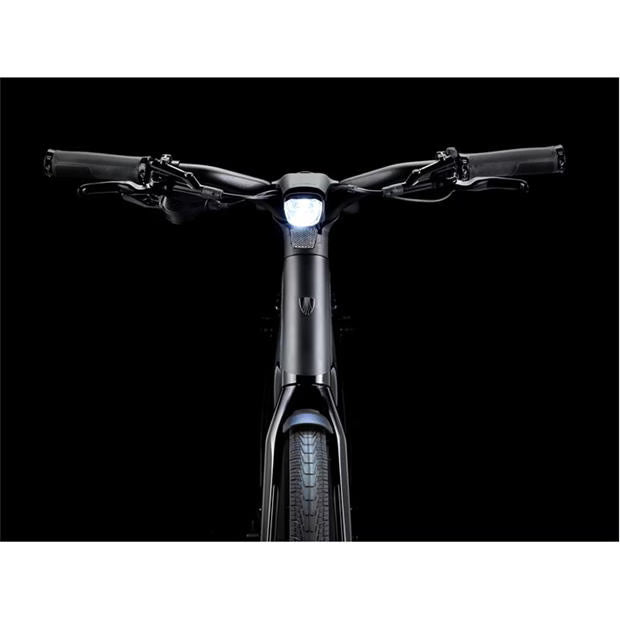

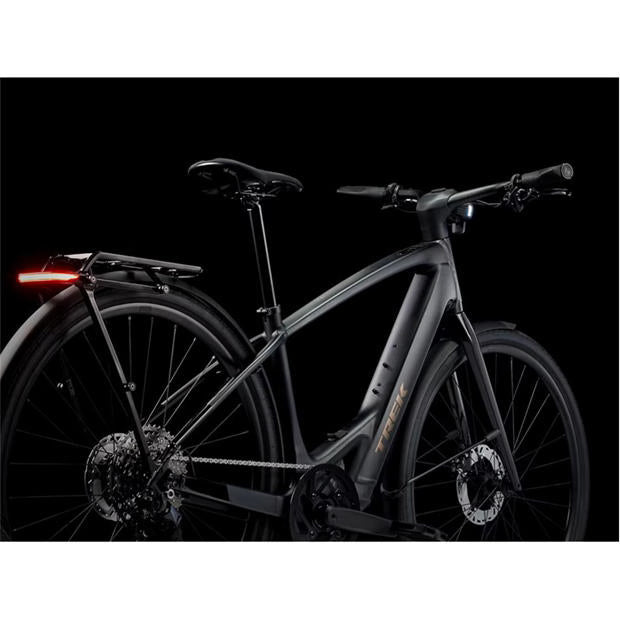

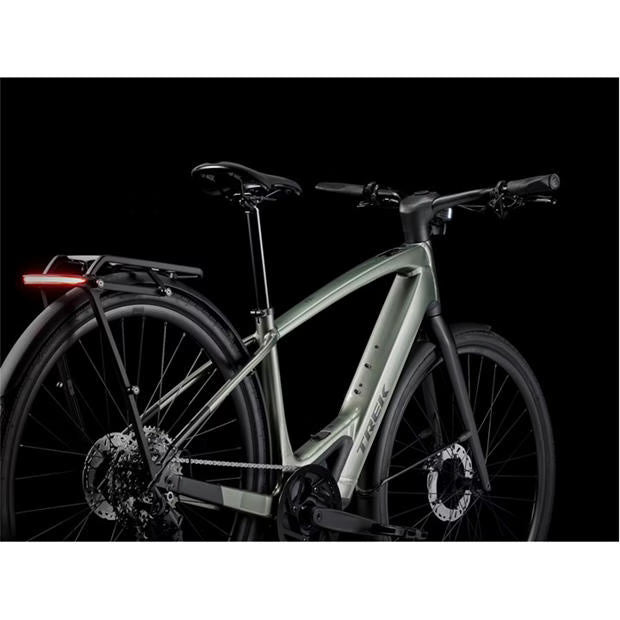

• • It comes ready to roll with built-in front and rear lights, a kickstand and a rear MIK rack with side mounting options



---



Specifications



Frameset



• • Frame: Alpha Platinum Aluminum, internal cable routing, dealer removable battery, rack and mudguard mounts, post mount disc, kickstand mount



• • Fork: FX Carbon, hidden fender mounts, flat mount disc, internal routing, 100x12 thru axle



Wheels



• • Rims: Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve



• • Tyres: Bontrager H2 Hard Case Lite, wire bead, 30 tpi, 700x40 mm

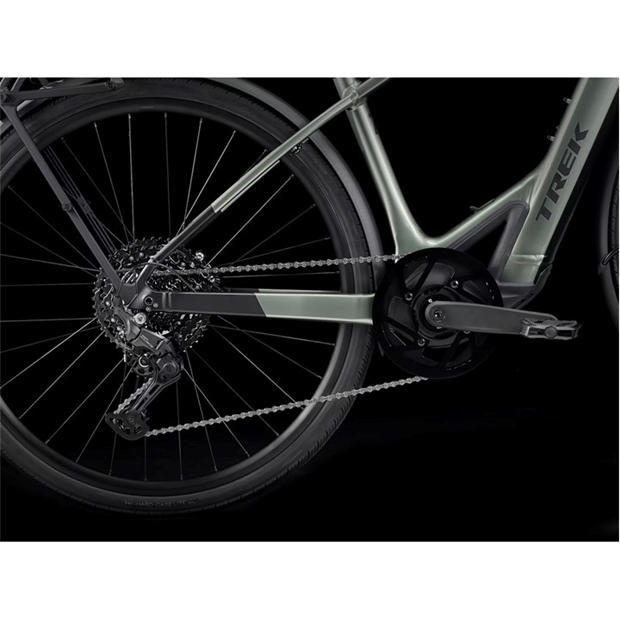

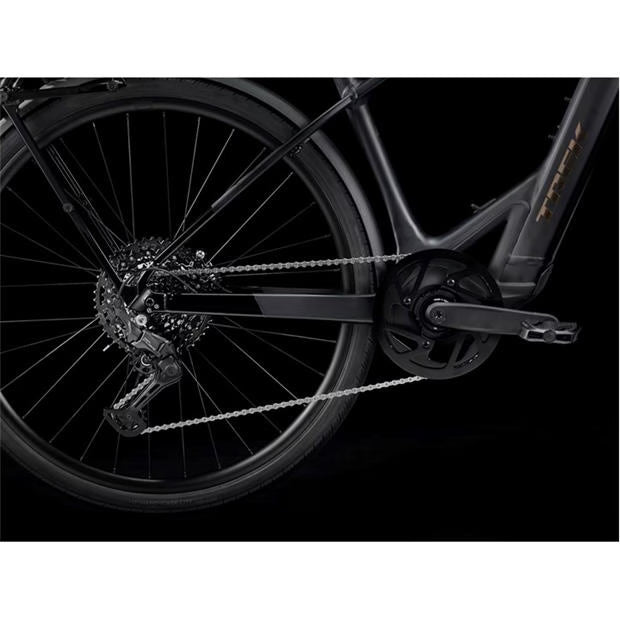

Drivetrain



• • Crankset: ProWheel Alloy, 46T narrow-wide chain ring, 170 mm arm length ISIS spline



• • Shifters: Shimano U6000, 10-speed



• • Rear Derailleur: Shimano CUES U6000 GS



• • Chain: Shimano LG500, 9/10/11-speed



• • Cassette: Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed



Components



• • Handlebar: Bontrager Integrated handlebar/stem



• • Stem: Bontrager Integrated handlebar/stem



• • Grips: Bontrager Satellite Elite, alloy lock-on



• • Brakes: Shimano hydraulic disc, RS600 lever, RS405 calliper



• • Saddle: Bontrager Verse Comp, steel rails, 165 mm width



• • Seatpost: Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length



• • Extras: Lights, Kickstand, Cargo Rack and Mudguard



E-System



• • Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power



• • Battery: TQ 360Wh



• • Controller: TQ LED display with Bluetooth & ANT+ connectivity



---



Trek FX+ Sizing



	S	M	L	XL
Rider Height (cm)	155 - 165	165 - 175	175 - 186	186 - 197
Inseam (cm)	72 - 78	77 - 83	82 - 88	87 - 93



Product code: 931432
