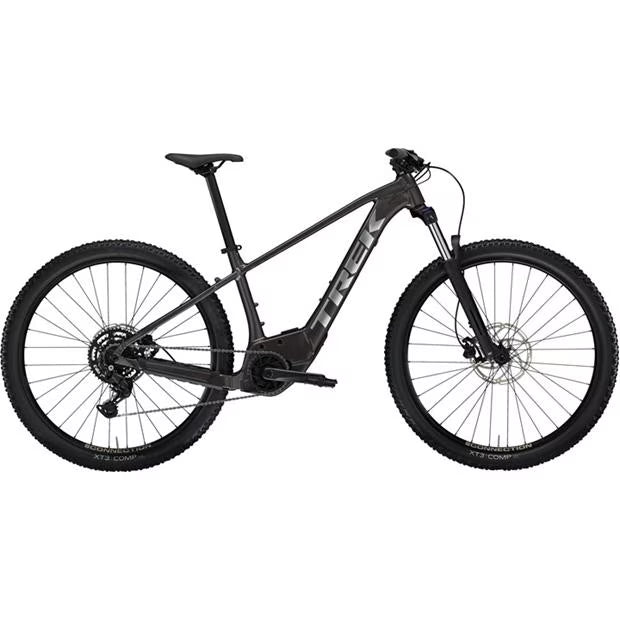

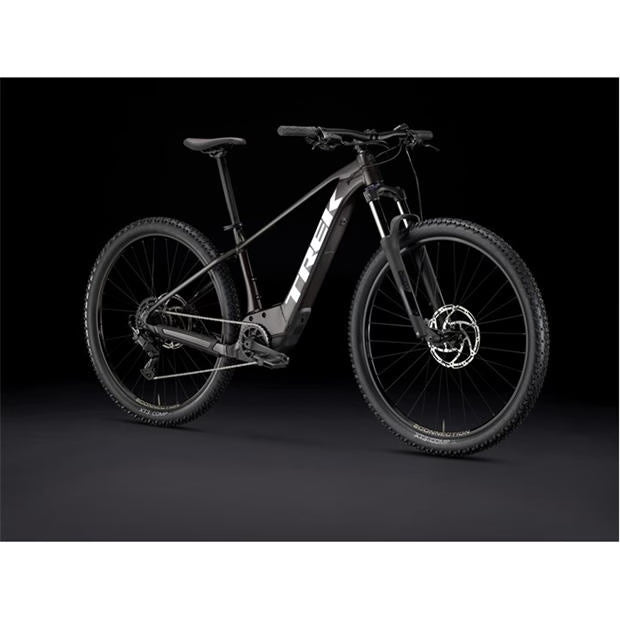

Marlin+ 6 2024 Electric Mountain Bike

About the All-New Marlin+ 6

  The Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120 mm suspension fork soaks up rocks, roots and pot holes on your ride, while the 9-speed Shimano CUES is durable and reliable for wherever you roll.   Wheel Sizes: XS,S (27.5 inch) M,L,XL (29 inch)

---



Key Features



• • Its AUTO mode adaptive motor support recognises speed reductions and adjusts assistance automatically



• • The 120 mm suspension keeps your ride feeling smooth through bumps, roots and rough stuff



• • The Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes



• • Trail-savvy geometry keeps handling easy and confident from singletrack to city streets



• • Tons of rack and mudguard mounts let you customise your ride for the trail or taking on daily commutes



---



Specifications



Frameset



• • Frame: Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle



• • Fork: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel



Wheels



• • Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve



• • Tyres: Bontrager XT3 Comp, wire bead, 30 tpi, 2.40



Drivetrain



• • Pedals: VP-536 nylon platform



• • Crank: FSA CK-220, 165 mm length



• • Chainring: FSA, 32T, steel



• • Rear Derailleur: Shimano CUES U4000



• • Shifters: Shimano U4000, 9-speed



• • Chain: Shimano LG500, 9/10/11-speed



• • Rear Cogs: Shimano LINKGLIDE LG300, 11-46, 9-speed



Components



• • Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise



• • Grips: Bontrager XR Endurance Comp, lock-on



• • Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree



• • Headset: Semi-integrated, loose ball bearing, 1-1/8 top, 1.5 bottom



• • Brakes: Tektro, CentreLock, 203 mm



• • Brake Levers: Tektro HD-M275 hydraulic disc

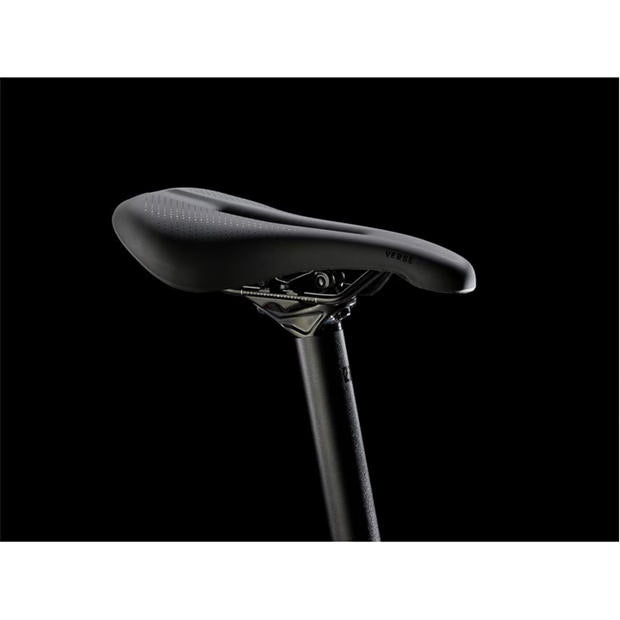

• • Saddle: Bontrager Arvada, steel rails, 138 mm width



• • Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset



Electric System

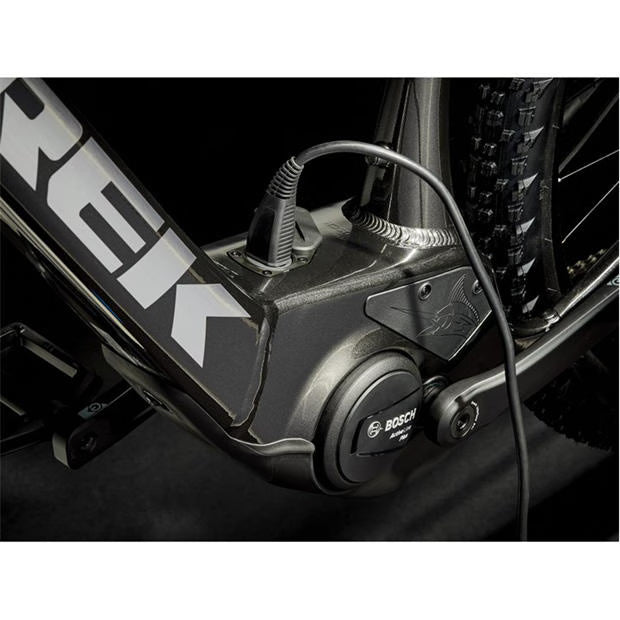

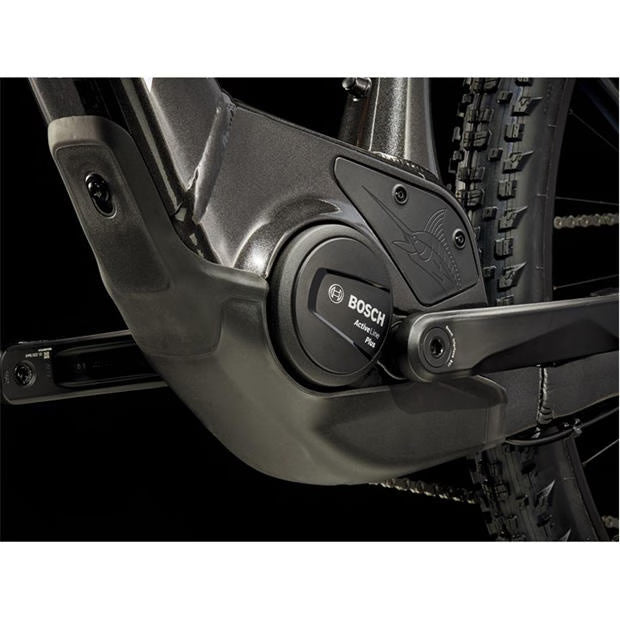

• • Motor: Bosch Active Line Plus

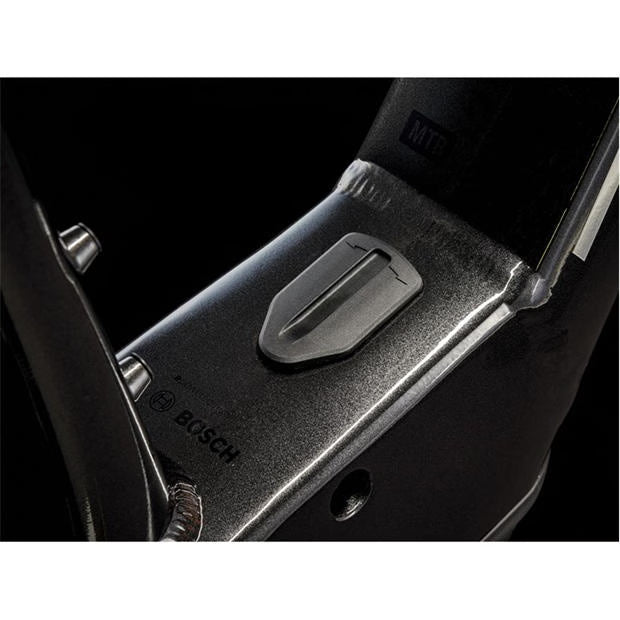

• • Battery: Bosch CompactTube 400 Wh

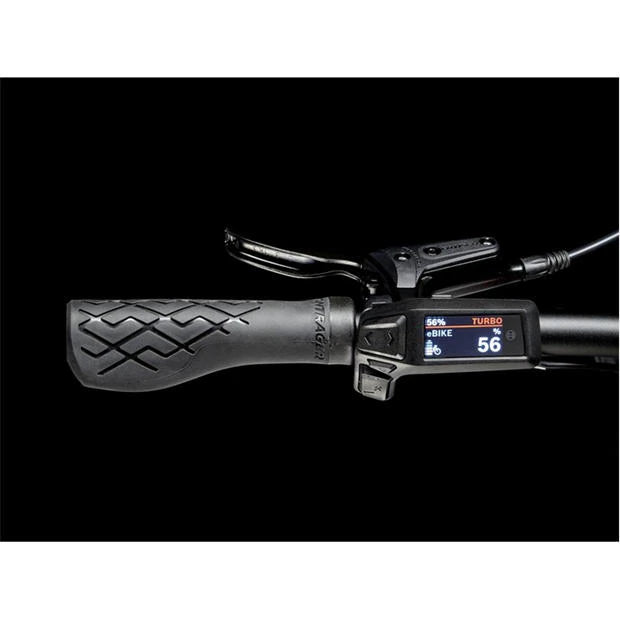

• • Computer: Bosch Purion 200



• • Charger: Bosch standard 2A, 230V, smart system



---



Bike Sizing



	XS	S	M	L	XL
Rider Height (cm)	145 - 155	155 - 165	165 - 176	177 - 188	188 - 195
Inseam (cm)	69 - 73	74 - 78	79 - 83	84 - 89	89 - 91

Product code: 931041
