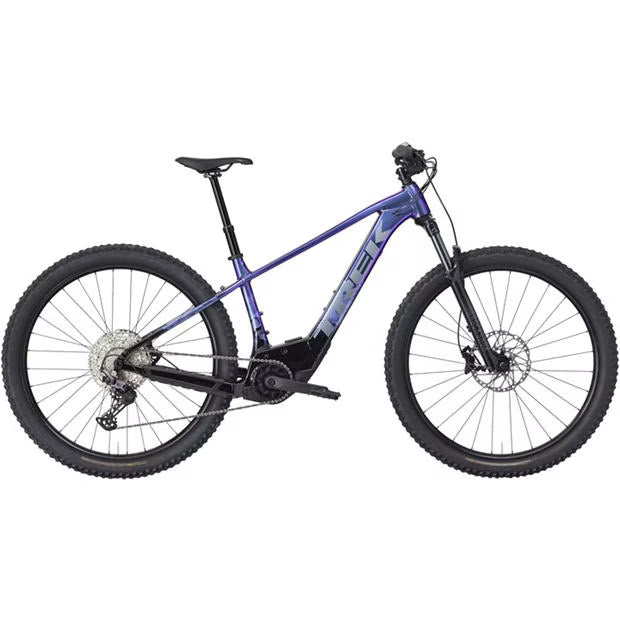

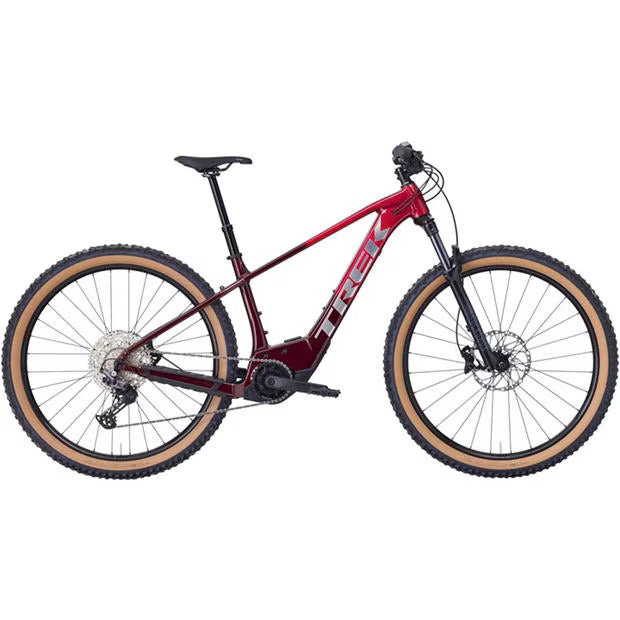

Marlin+ 8 2026 Electric Mountain Bike2,399.00

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

---



Key Features



• • Smooth, quiet support - Bosch Active Line Plus mid-power motor doles out a smooth 50 Nm of torque. Its controlled acceleration, low pedal resistance and super-quiet operation give you a natural-feeling, unobtrusive ride.



• • Clean, simple controls - The 2-in-1 remote and display provides all the information and control you'll need in a compact, full-colour handlebar controller with intuitive controls.



• • System safety taken seriously - Trek sets its e-bike safety standards high with UL certified e-systems, sophisticated battery management fail-safe systems and battery cells from tier 1 suppliers.



• • Shimano Deore - Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff and the fun. With smooth riding, improved chain stability and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.



---



---



Specifications



Frameset



• • Frame: Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle



• • Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel



Wheels



• • Rims: Bontrager Line TLR 30, Tubeless-Ready, Presta valve



• • Tyres: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 2.60



Drivetrain



• • Crankset:



• • Shifters: Shimano Deore M6100, 12-speed



• • Rear Derailleur: Shimano Deore M6100, long cage



• • Chain: Shimano Deore M6100, 12-speed



• • Cassette: Shimano Deore M6100, 10-51, 12-speed



Components



• • Handlebar: Bontrager Comp, alloy, 31.8 mm, 40mm rise



• • Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree



• • Grips: Trek Line Comp, nylon lock-on



• • Brakes: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper



• • Saddle: Bontrager Verse P3, steel rails



• • Seatpost: TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length



E-System



• • Motor: Bosch Active Line Plus, 50 Nm



• • Charger: Bosch standard 2A, 230V, smart system



• • Battery: Bosch CompactTube 400 Wh



• • Computer: Bosch Purion 200



---



Trek Marlin+ Sizing



	XS	S	M	L	XL
Rider Height (cm)	145 - 155	155 - 165	165 - 176	177 - 188	188 - 195
Inseam (cm)	69 - 73	74 - 78	79 - 83	84 - 89	89 - 91

Product code: 931366
